José Hisse

Exportando eventos do Kubernetes com o FluentBit

O FluentBit é utilizado para coletar, filtrar e encaminhar logs, métricas e traces. Ele é super leve e tem suporte a várias fontes de dados e destinos. Neste post vamos ver como coletar eventos do Kubernetes e enviar para um destino de nossa escolha. É esperado que você tenha algum conhecimento sobre Kubernetes e observabilidade, para que você possa tirar o máximo proveito deste post.

Criação do ambiente de testes

Para nosso ambiente de testes, vamos precisar de um cluster Kubernetes. Vamos continuar utilizando o Kind para criar um cluster local, assim como fizemos em diversos posts anteriores. Daremos o nome ao nosso cluster de events-exporter-test.

$ kind create cluster --name events-exporter-test
Creating cluster "events-exporter-test" ...
 ✓ Ensuring node image (kindest/node:v1.30.0)
 ✓ Preparing nodes
 ✓ Writing configuration
 ✓ Starting control-plane
 ✓ Installing CNI
 ✓ Installing StorageClass
Set kubectl context to "kind-events-exporter-test"
You can now use your cluster with:

kubectl cluster-info --context kind-events-exporter-test

Thanks for using kind!

Caso você não tenha o Kind instalado, você pode seguir as instruções de instalação da documentação oficial.

Eventos do Kubernetes

Com o cluster criado, devemos verificar os eventos do Kubernetes que foram emitidos nos primeiros segundos após a criação dos primeiros recursos. Vamos utilizar o kubectl para interagir com o cluster.

$ kubectl get events -A
NAMESPACE            LAST SEEN   TYPE      REASON                    OBJECT                                       MESSAGE
default              42s         Normal    Starting                  node/events-exporter-test-control-plane      Starting kubelet.
default              42s         Normal    NodeAllocatableEnforced   node/events-exporter-test-control-plane      Updated Node Allocatable limit across pods
default              42s         Normal    NodeHasSufficientMemory   node/events-exporter-test-control-plane      Node events-exporter-test-control-plane status is now: NodeHasSufficientMemory
default              42s         Normal    NodeHasNoDiskPressure     node/events-exporter-test-control-plane      Node events-exporter-test-control-plane status is now: NodeHasNoDiskPressure
default              42s         Normal    NodeHasSufficientPID      node/events-exporter-test-control-plane      Node events-exporter-test-control-plane status is now: NodeHasSufficientPID
default              29s         Normal    RegisteredNode            node/events-exporter-test-control-plane      Node events-exporter-test-control-plane event: Registered Node events-exporter-test-control-plane in Controller
default              26s         Normal    Starting                  node/events-exporter-test-control-plane
default              26s         Normal    NodeReady                 node/events-exporter-test-control-plane      Node events-exporter-test-control-plane status is now: NodeReady
kube-system          28s         Warning   FailedScheduling          pod/coredns-7db6d8ff4d-6qvz4                 0/1 nodes are available: 1 node(s) had untolerated taint {node.kubernetes.io/not-ready: }. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.
kube-system          26s         Normal    Scheduled                 pod/coredns-7db6d8ff4d-6qvz4                 Successfully assigned kube-system/coredns-7db6d8ff4d-6qvz4 to events-exporter-test-control-plane
kube-system          25s         Normal    Pulled                    pod/coredns-7db6d8ff4d-6qvz4                 Container image "registry.k8s.io/coredns/coredns:v1.11.1" already present on machine
kube-system          25s         Normal    Created                   pod/coredns-7db6d8ff4d-6qvz4                 Created container coredns
kube-system          25s         Normal    Started                   pod/coredns-7db6d8ff4d-6qvz4                 Started container coredns
kube-system          28s         Warning   FailedScheduling          pod/coredns-7db6d8ff4d-v2hf6                 0/1 nodes are available: 1 node(s) had untolerated taint {node.kubernetes.io/not-ready: }. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.
kube-system          26s         Normal    Scheduled                 pod/coredns-7db6d8ff4d-v2hf6                 Successfully assigned kube-system/coredns-7db6d8ff4d-v2hf6 to events-exporter-test-control-plane
kube-system          25s         Normal    Pulled                    pod/coredns-7db6d8ff4d-v2hf6                 Container image "registry.k8s.io/coredns/coredns:v1.11.1" already present on machine
kube-system          25s         Normal    Created                   pod/coredns-7db6d8ff4d-v2hf6                 Created container coredns
kube-system          25s         Normal    Started                   pod/coredns-7db6d8ff4d-v2hf6                 Started container coredns
kube-system          28s         Normal    SuccessfulCreate          replicaset/coredns-7db6d8ff4d                Created pod: coredns-7db6d8ff4d-6qvz4
kube-system          28s         Normal    SuccessfulCreate          replicaset/coredns-7db6d8ff4d                Created pod: coredns-7db6d8ff4d-v2hf6
kube-system          28s         Normal    ScalingReplicaSet         deployment/coredns                           Scaled up replica set coredns-7db6d8ff4d to 2
kube-system          28s         Normal    Scheduled                 pod/kindnet-vxt5c                            Successfully assigned kube-system/kindnet-vxt5c to events-exporter-test-control-plane
kube-system          28s         Warning   FailedMount               pod/kindnet-vxt5c                            MountVolume.SetUp failed for volume "kube-api-access-rr6wn" : configmap "kube-root-ca.crt" not found
kube-system          27s         Normal    Pulled                    pod/kindnet-vxt5c                            Container image "docker.io/kindest/kindnetd:v20240202-8f1494ea" already present on machine
kube-system          27s         Normal    Created                   pod/kindnet-vxt5c                            Created container kindnet-cni
kube-system          26s         Normal    Started                   pod/kindnet-vxt5c                            Started container kindnet-cni
kube-system          28s         Normal    SuccessfulCreate          daemonset/kindnet                            Created pod: kindnet-vxt5c
kube-system          42s         Normal    LeaderElection            lease/kube-controller-manager                events-exporter-test-control-plane_178c251c-63f7-4f3a-a122-012269467082 became leader
kube-system          28s         Normal    Scheduled                 pod/kube-proxy-dsvh4                         Successfully assigned kube-system/kube-proxy-dsvh4 to events-exporter-test-control-plane
kube-system          28s         Warning   FailedMount               pod/kube-proxy-dsvh4                         MountVolume.SetUp failed for volume "kube-api-access-lj5mj" : configmap "kube-root-ca.crt" not found
kube-system          27s         Normal    Pulled                    pod/kube-proxy-dsvh4                         Container image "registry.k8s.io/kube-proxy:v1.30.0" already present on machine
kube-system          27s         Normal    Created                   pod/kube-proxy-dsvh4                         Created container kube-proxy
kube-system          27s         Normal    Started                   pod/kube-proxy-dsvh4                         Started container kube-proxy
kube-system          28s         Normal    SuccessfulCreate          daemonset/kube-proxy                         Created pod: kube-proxy-dsvh4
kube-system          40s         Normal    LeaderElection            lease/kube-scheduler                         events-exporter-test-control-plane_678865bb-5f38-4006-bf0f-d60d92b7ac50 became leader
local-path-storage   28s         Warning   FailedScheduling          pod/local-path-provisioner-988d74bc-z9k54    0/1 nodes are available: 1 node(s) had untolerated taint {node.kubernetes.io/not-ready: }. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.
local-path-storage   26s         Normal    Scheduled                 pod/local-path-provisioner-988d74bc-z9k54    Successfully assigned local-path-storage/local-path-provisioner-988d74bc-z9k54 to events-exporter-test-control-plane
local-path-storage   25s         Normal    Pulled                    pod/local-path-provisioner-988d74bc-z9k54    Container image "docker.io/kindest/local-path-provisioner:v20240202-8f1494ea" already present on machine
local-path-storage   25s         Normal    Created                   pod/local-path-provisioner-988d74bc-z9k54    Created container local-path-provisioner
local-path-storage   25s         Normal    Started                   pod/local-path-provisioner-988d74bc-z9k54    Started container local-path-provisioner
local-path-storage   28s         Normal    SuccessfulCreate          replicaset/local-path-provisioner-988d74bc   Created pod: local-path-provisioner-988d74bc-z9k54
local-path-storage   28s         Normal    ScalingReplicaSet         deployment/local-path-provisioner            Scaled up replica set local-path-provisioner-988d74bc to 1

Vemos que logo nos primeiros segundos após a criação do cluster, diversos eventos foram emitidos. Esses eventos são importantes para entender o que está acontecendo no cluster. Muitos problemas podem ser identificados através dos eventos emitidos pelo Kubernetes. Posso citar alguns mais comuns que vivencio no dia a dia:

Além dos eventos de erro, temos os eventos de informação e de aviso. Como os que aparecem nos logs acima:

Inúmeros outros problemas podem ser identificados através desta forma de análise, por isso é importante coletar e armazenar esses eventos para análise posterior ou até para alerta em tempo real.

Diagrama da solução

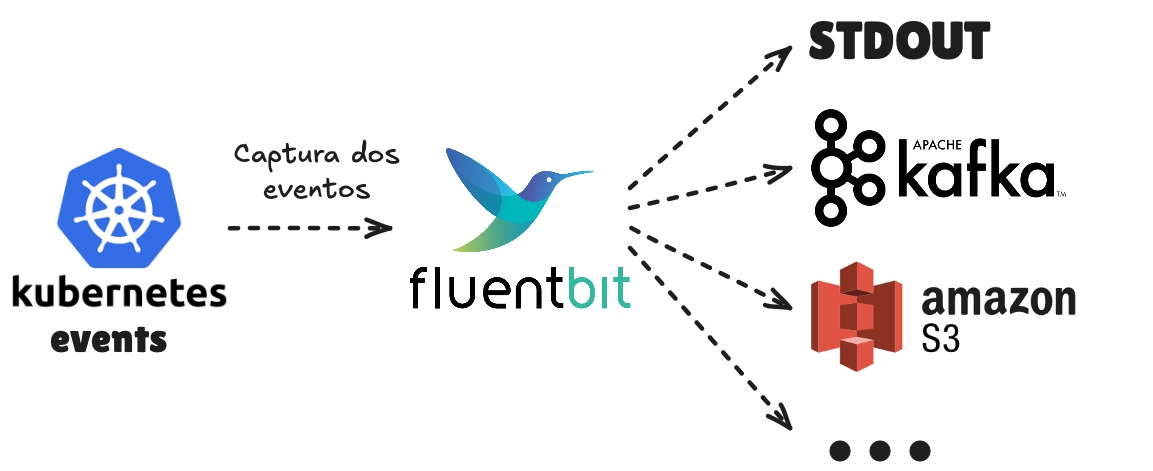

Para ilustrar o que vamos fazer e termos uma ideia do fluxo geral, vamos criar um diagrama da solução.

Kubernetes events exporter FluentBit

Como podemos ver, a solução é bem simples. O FluentBit será executado no cluster Kubernetes e irá coletar os eventos que nosso cluster está emitindo.

Desde a versão 3.1.0, o FluentBit faz a coleta de eventos utilizando o watch do Kubernetes, o que significa que ele irá coletar os eventos conforme eles são emitidos, sem a necessidade de fazer polling. Com os eventos sendo coletados, podemos encaminhá-los para um destino de nossa escolha, seja a própria saída padrão, um tópico Kafka, um datalake no S3 ou qualquer outro destino que o FluentBit suporte e que seja útil para seu caso de uso.

Aqui é importante notar que o FluentBit não armazena os eventos, ele apenas os coleta e encaminha para um destino.

Instalação do FluentBit

Iremos instalar o FluentBit através do Helm, que é um gerenciador de pacotes para Kubernetes. Caso você não tenha o Helm instalado, você pode seguir essas instruções de instalação da documentação oficial.

Após instalar o Helm, temos que adicionar o repositório de charts do FluentBit para que possamos instalar o chart correspondente. Os charts podem ser encontrados na organização do Fluent no GitHub. Para adicionar o repositório, execute o seguinte comando:

helm repo add fluent https://fluent.github.io/helm-charts

Agora devemos atualizar o cache local de charts para que o Helm possa encontrar o chart do FluentBit.

helm repo update

Para instalar o chat do FluentBit, basta executar o seguinte comando:

helm install fluent-bit-k8s-events fluent/fluent-bit --version 0.47.5 ...

Como forma alternativa a apresentada acima, podemos indicar o repositório diretamente no comando de instalação do chart. Eliminando a necessidade de adicionar o repositório e atualizar o cache. O comando ficaria assim:

helm install fluent-bit-k8s-events fluent-bit --repo https://fluent.github.io/helm-charts --version 0.47.5 ...

Particularmente, prefiro a última opção, pois ela é mais direta que a primeira, embora ambas façam a mesma coisa.

Agora podemos avançar em nossa solução e instalar o chart do FluentBit. Para isso devemos criar uma arquivo de configuração chamado values.yaml. Ele irá carregar nossas configurações para que o FluentBit seja instalado da forma que desejamos.

kind: Deployment

replicas: 1

rbac:
  eventsAccess: true

config:
  # https://docs.fluentbit.io/manual/pipeline/inputs/kubernetes-events
  inputs: | # Kubernetes Events input
    [INPUT]
        name  kubernetes_events
        tag   k-events
  filters: "" # No filters
  # https://docs.fluentbit.io/manual/pipeline/outputs/standard-output
  outputs: | # STDOUT output
    [OUTPUT]
        name  Stdout
        match k-events

Você sempre poderá consultar a documentação do FluentBit para entender melhor as configurações disponíveis no values.yaml. Ou poderá executar o comando helm show values fluent-bit --repo https://fluent.github.io/helm-charts --version 0.47.5 para ver o values padrão do chart.

Vamos destacar que, em ambientes de produção, deveria haver um cuidado redobrado com a configuração apresentada acima. Sempre seguir as boas práticas em ambientes produtivos, como por exemplo, definir quantidades de cpu e memória, limites de acesso do pod e outras configurações importantes de segurança. Isso foge um pouco do objetivo deste post, por isso não vamos abordar esses tópicos aqui.

Vamos explicar com mais detalhes o que cada parte do arquivo de configuração que passamos para o comando de instalação faz:

Para facilitar a instalação do chart no cluster, vamos colocar tudo em um único comando. O comando irá instalar o chart em um namespace chamado k8s-events-exporter. Fixamos a versão do chart para garantir que quando você executar o comando, a versão seja a mesma que estamos utilizando. Caso você queira utilizar uma versão mais recente, basta alterar o valor da versão no comando. Só tome cuidado para garantir que não haja quebra de compatibilidade entre as versões.

helm upgrade --install fluent-bit-k8s-events fluent-bit \
  --repo https://fluent.github.io/helm-charts \
  --version 0.47.5 \
  --namespace k8s-events-exporter --create-namespace \
  -f - << EOF
kind: Deployment
replicas: 1
rbac:
  eventsAccess: true
config:
  inputs: |
    [INPUT]
        name  kubernetes_events
        tag   k-events
  filters: ""
  outputs: |
    [OUTPUT]
        name  Stdout
        match k-events
EOF

Se tudo ocorrer como esperado, você verá uma saída semelhante a essa:

Release "fluent-bit-k8s-events" does not exist. Installing it now.
NAME: fluent-bit-k8s-events
LAST DEPLOYED: Fri Aug  2 01:36:57 2024
NAMESPACE: k8s-events-exporter
STATUS: deployed
REVISION: 1
NOTES:
Get Fluent Bit build information by running these commands:

export POD_NAME=$(kubectl get pods --namespace k8s-events-exporter -l "app.kubernetes.io/name=fluent-bit,app.kubernetes.io/instance=fluent-bit-k8s-events" -o jsonpath="{.items[0].metadata.name}")
kubectl --namespace k8s-events-exporter port-forward $POD_NAME 2020:2020
curl http://127.0.0.1:2020

Validando a instalação

Agora vamos verificar os logs do pod do FluentBit para ver se os eventos do Kubernetes estão sendo coletados e enviados para o stdout.

$ kubectl get pods -n k8s-events-exporter
NAME                                    READY   STATUS    RESTARTS   AGE
fluent-bit-k8s-events-b7f599f46-9lh6l   1/1     Running   0          16s

$ kubectl logs -n k8s-events-exporter fluent-bit-k8s-events-b7f599f46-9lh6l
Fluent Bit v3.1.4
* Copyright (C) 2015-2024 The Fluent Bit Authors
* Fluent Bit is a CNCF sub-project under the umbrella of Fluentd
* https://fluentbit.io

______ _                  _    ______ _ _           _____  __
|  ___| |                | |   | ___ (_) |         |____ |/  |
| |_  | |_   _  ___ _ __ | |_  | |_/ /_| |_  __   __   / /`| |
|  _| | | | | |/ _ \ '_ \| __| | ___ \ | __| \ \ / /   \ \ | |
| |   | | |_| |  __/ | | | |_  | |_/ / | |_   \ V /.___/ /_| |_
\_|   |_|\__,_|\___|_| |_|\__| \____/|_|\__|   \_/ \____(_)___/

[2024/08/02 04:37:09] [ info] [fluent bit] version=3.1.4, commit=c767acfe6c, pid=1
[2024/08/02 04:37:09] [ info] [storage] ver=1.5.2, type=memory, sync=normal, checksum=off, max_chunks_up=128
[2024/08/02 04:37:09] [ info] [cmetrics] version=0.9.1
[2024/08/02 04:37:09] [ info] [ctraces ] version=0.5.2
[2024/08/02 04:37:09] [ info] [input:kubernetes_events:kubernetes_events.0] initializing
[2024/08/02 04:37:09] [ info] [input:kubernetes_events:kubernetes_events.0] storage_strategy='memory' (memory only)
[2024/08/02 04:37:09] [ info] [input:kubernetes_events:kubernetes_events.0] API server: https://kubernetes.default.svc:443
[2024/08/02 04:37:09] [ info] [input:kubernetes_events:kubernetes_events.0] thread instance initialized
[2024/08/02 04:37:09] [ info] [output:stdout:stdout.0] worker #0 started
[2024/08/02 04:37:09] [ info] [http_server] listen iface=0.0.0.0 tcp_port=2020
[2024/08/02 04:37:09] [ info] [sp] stream processor started
[2024/08/02 04:37:09] [ info] [input:kubernetes_events:kubernetes_events.0] Requesting /api/v1/events?watch=1&resourceVersion=1071
[0] k-events: [[1722572945.000000000, {}], {"metadata"=>{"name"=>"events-exporter-test-control-plane.17e7cef7aa223ad9", "namespace"=>"default", "uid"=>"cb9806f2-5236-4e44-9565-61a6931c8f65", "resourceVersion"=>"220", "creationTimestamp"=>"2024-08-02T04:29:05Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:05Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Node", "name"=>"events-exporter-test-control-plane", "uid"=>"events-exporter-test-control-plane"}, "reason"=>"Starting", "message"=>"Starting kubelet.", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:05Z", "lastTimestamp"=>"2024-08-02T04:29:05Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[1] k-events: [[1722572945.000000000, {}], {"metadata"=>{"name"=>"events-exporter-test-control-plane.17e7cef7ac3121bb", "namespace"=>"default", "uid"=>"bc3a5237-c247-4f37-8162-6497d6d4f52f", "resourceVersion"=>"222", "creationTimestamp"=>"2024-08-02T04:29:05Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:05Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Node", "name"=>"events-exporter-test-control-plane", "uid"=>"events-exporter-test-control-plane"}, "reason"=>"NodeAllocatableEnforced", "message"=>"Updated Node Allocatable limit across pods", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:05Z", "lastTimestamp"=>"2024-08-02T04:29:05Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[2] k-events: [[1722572945.000000000, {}], {"metadata"=>{"name"=>"events-exporter-test-control-plane.17e7cef7b0508eb2", "namespace"=>"default", "uid"=>"07486806-1ab8-4fa0-b9b8-10bb813fbc66", "resourceVersion"=>"235", "creationTimestamp"=>"2024-08-02T04:29:05Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:05Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Node", "name"=>"events-exporter-test-control-plane", "uid"=>"events-exporter-test-control-plane"}, "reason"=>"NodeHasSufficientMemory", "message"=>"Node events-exporter-test-control-plane status is now: NodeHasSufficientMemory", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:05Z", "lastTimestamp"=>"2024-08-02T04:29:05Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[3] k-events: [[1722572945.000000000, {}], {"metadata"=>{"name"=>"events-exporter-test-control-plane.17e7cef7b050b615", "namespace"=>"default", "uid"=>"93adfe12-0a06-4255-926b-ede9c89e388e", "resourceVersion"=>"236", "creationTimestamp"=>"2024-08-02T04:29:05Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:05Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Node", "name"=>"events-exporter-test-control-plane", "uid"=>"events-exporter-test-control-plane"}, "reason"=>"NodeHasNoDiskPressure", "message"=>"Node events-exporter-test-control-plane status is now: NodeHasNoDiskPressure", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:05Z", "lastTimestamp"=>"2024-08-02T04:29:05Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[4] k-events: [[1722572945.000000000, {}], {"metadata"=>{"name"=>"events-exporter-test-control-plane.17e7cef7b050c24a", "namespace"=>"default", "uid"=>"b1bc8722-bb7d-4414-b94a-ca15b5cd86f8", "resourceVersion"=>"238", "creationTimestamp"=>"2024-08-02T04:29:05Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:05Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Node", "name"=>"events-exporter-test-control-plane", "uid"=>"events-exporter-test-control-plane"}, "reason"=>"NodeHasSufficientPID", "message"=>"Node events-exporter-test-control-plane status is now: NodeHasSufficientPID", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:05Z", "lastTimestamp"=>"2024-08-02T04:29:05Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[5] k-events: [[1722572958.000000000, {}], {"metadata"=>{"name"=>"events-exporter-test-control-plane.17e7cefac6f1ccd2", "namespace"=>"default", "uid"=>"466470c8-e149-4a9d-93ef-50fba6ae380e", "resourceVersion"=>"322", "creationTimestamp"=>"2024-08-02T04:29:18Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:18Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Node", "name"=>"events-exporter-test-control-plane", "uid"=>"932765a5-514e-426c-8ff7-f329ffa623fb", "apiVersion"=>"v1"}, "reason"=>"RegisteredNode", "message"=>"Node events-exporter-test-control-plane event: Registered Node events-exporter-test-control-plane in Controller", "source"=>{"component"=>"node-controller"}, "firstTimestamp"=>"2024-08-02T04:29:18Z", "lastTimestamp"=>"2024-08-02T04:29:18Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"node-controller", "reportingInstance"=>""}]
[6] k-events: [[1722572960.000000000, {}], {"metadata"=>{"name"=>"events-exporter-test-control-plane.17e7cefb3030f53a", "namespace"=>"default", "uid"=>"9bcc5496-8f67-4008-a904-5471f4a4d06a", "resourceVersion"=>"391", "creationTimestamp"=>"2024-08-02T04:29:20Z", "managedFields"=>[{"manager"=>"kube-proxy", "operation"=>"Update", "apiVersion"=>"events.k8s.io/v1", "time"=>"2024-08-02T04:29:20Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:action"=>{}, "f:eventTime"=>{}, "f:reason"=>{}, "f:regarding"=>{}, "f:reportingController"=>{}, "f:reportingInstance"=>{}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Node", "name"=>"events-exporter-test-control-plane", "uid"=>"events-exporter-test-control-plane"}, "reason"=>"Starting", "source"=>{}, "firstTimestamp"=>nil, "lastTimestamp"=>nil, "type"=>"Normal", "eventTime"=>"2024-08-02T04:29:20.733131Z", "action"=>"StartKubeProxy", "reportingComponent"=>"kube-proxy", "reportingInstance"=>"kube-proxy-events-exporter-test-control-plane"}]
[7] k-events: [[1722572961.000000000, {}], {"metadata"=>{"name"=>"events-exporter-test-control-plane.17e7cefb68eed8ac", "namespace"=>"default", "uid"=>"f2a486eb-e3d8-4c97-b073-5726887babb8", "resourceVersion"=>"399", "creationTimestamp"=>"2024-08-02T04:29:21Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:21Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Node", "name"=>"events-exporter-test-control-plane", "uid"=>"events-exporter-test-control-plane"}, "reason"=>"NodeReady", "message"=>"Node events-exporter-test-control-plane status is now: NodeReady", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:21Z", "lastTimestamp"=>"2024-08-02T04:29:21Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[8] k-events: [[1722573417.000000000, {}], {"metadata"=>{"name"=>"fluent-bit-k8s-events-b7f599f46-9lh6l.17e7cf6588e392a1", "namespace"=>"k8s-events-exporter", "uid"=>"5868e015-c86d-43c8-aae9-a6c6bdbede64", "resourceVersion"=>"1051", "creationTimestamp"=>"2024-08-02T04:36:57Z", "managedFields"=>[{"manager"=>"kube-scheduler", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:36:57Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"k8s-events-exporter", "name"=>"fluent-bit-k8s-events-b7f599f46-9lh6l", "uid"=>"cb009ef4-b4d5-4694-bb08-5a46e9c96f6c", "apiVersion"=>"v1", "resourceVersion"=>"1046"}, "reason"=>"Scheduled", "message"=>"Successfully assigned k8s-events-exporter/fluent-bit-k8s-events-b7f599f46-9lh6l to events-exporter-test-control-plane", "source"=>{"component"=>"default-scheduler"}, "firstTimestamp"=>"2024-08-02T04:36:57Z", "lastTimestamp"=>"2024-08-02T04:36:57Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"default-scheduler", "reportingInstance"=>""}]
[9] k-events: [[1722573417.000000000, {}], {"metadata"=>{"name"=>"fluent-bit-k8s-events-b7f599f46-9lh6l.17e7cf65a2d9e4cd", "namespace"=>"k8s-events-exporter", "uid"=>"1598bad1-ddc0-480c-a965-3c495c725a58", "resourceVersion"=>"1055", "creationTimestamp"=>"2024-08-02T04:36:57Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:36:57Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"k8s-events-exporter", "name"=>"fluent-bit-k8s-events-b7f599f46-9lh6l", "uid"=>"cb009ef4-b4d5-4694-bb08-5a46e9c96f6c", "apiVersion"=>"v1", "resourceVersion"=>"1050", "fieldPath"=>"spec.containers{fluent-bit}"}, "reason"=>"Pulling", "message"=>"Pulling image "cr.fluentbit.io/fluent/fluent-bit:3.1.4"", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:36:57Z", "lastTimestamp"=>"2024-08-02T04:36:57Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[10] k-events: [[1722573428.000000000, {}], {"metadata"=>{"name"=>"fluent-bit-k8s-events-b7f599f46-9lh6l.17e7cf6835aaf954", "namespace"=>"k8s-events-exporter", "uid"=>"665b3a60-00e2-4951-b5d2-1ac233989401", "resourceVersion"=>"1069", "creationTimestamp"=>"2024-08-02T04:37:08Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:37:08Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"k8s-events-exporter", "name"=>"fluent-bit-k8s-events-b7f599f46-9lh6l", "uid"=>"cb009ef4-b4d5-4694-bb08-5a46e9c96f6c", "apiVersion"=>"v1", "resourceVersion"=>"1050", "fieldPath"=>"spec.containers{fluent-bit}"}, "reason"=>"Pulled", "message"=>"Successfully pulled image "cr.fluentbit.io/fluent/fluent-bit:3.1.4" in 11.052s (11.052s including waiting). Image size: 37791205 bytes.", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:37:08Z", "lastTimestamp"=>"2024-08-02T04:37:08Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[11] k-events: [[1722573428.000000000, {}], {"metadata"=>{"name"=>"fluent-bit-k8s-events-b7f599f46-9lh6l.17e7cf6836602dad", "namespace"=>"k8s-events-exporter", "uid"=>"03017d04-9330-4c2e-9531-920e060f6cde", "resourceVersion"=>"1070", "creationTimestamp"=>"2024-08-02T04:37:08Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:37:08Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"k8s-events-exporter", "name"=>"fluent-bit-k8s-events-b7f599f46-9lh6l", "uid"=>"cb009ef4-b4d5-4694-bb08-5a46e9c96f6c", "apiVersion"=>"v1", "resourceVersion"=>"1050", "fieldPath"=>"spec.containers{fluent-bit}"}, "reason"=>"Created", "message"=>"Created container fluent-bit", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:37:08Z", "lastTimestamp"=>"2024-08-02T04:37:08Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[12] k-events: [[1722573429.000000000, {}], {"metadata"=>{"name"=>"fluent-bit-k8s-events-b7f599f46-9lh6l.17e7cf683c061b3a", "namespace"=>"k8s-events-exporter", "uid"=>"4ec68af4-a2a4-4bfe-b167-7c7d5b61c91c", "resourceVersion"=>"1071", "creationTimestamp"=>"2024-08-02T04:37:09Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:37:09Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"k8s-events-exporter", "name"=>"fluent-bit-k8s-events-b7f599f46-9lh6l", "uid"=>"cb009ef4-b4d5-4694-bb08-5a46e9c96f6c", "apiVersion"=>"v1", "resourceVersion"=>"1050", "fieldPath"=>"spec.containers{fluent-bit}"}, "reason"=>"Started", "message"=>"Started container fluent-bit", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:37:09Z", "lastTimestamp"=>"2024-08-02T04:37:09Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[13] k-events: [[1722573417.000000000, {}], {"metadata"=>{"name"=>"fluent-bit-k8s-events-b7f599f46.17e7cf6587b6953e", "namespace"=>"k8s-events-exporter", "uid"=>"419c3bcd-3a9b-461d-a5ee-b338898564b1", "resourceVersion"=>"1047", "creationTimestamp"=>"2024-08-02T04:36:57Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:36:57Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"ReplicaSet", "namespace"=>"k8s-events-exporter", "name"=>"fluent-bit-k8s-events-b7f599f46", "uid"=>"c2fc17ea-4061-41c5-8bf7-ba5175300fa0", "apiVersion"=>"apps/v1", "resourceVersion"=>"1042"}, "reason"=>"SuccessfulCreate", "message"=>"Created pod: fluent-bit-k8s-events-b7f599f46-9lh6l", "source"=>{"component"=>"replicaset-controller"}, "firstTimestamp"=>"2024-08-02T04:36:57Z", "lastTimestamp"=>"2024-08-02T04:36:57Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"replicaset-controller", "reportingInstance"=>""}]
[14] k-events: [[1722573417.000000000, {}], {"metadata"=>{"name"=>"fluent-bit-k8s-events.17e7cf65871f3792", "namespace"=>"k8s-events-exporter", "uid"=>"50837b36-1753-4836-a616-52c38dcaa2f1", "resourceVersion"=>"1044", "creationTimestamp"=>"2024-08-02T04:36:57Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:36:57Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Deployment", "namespace"=>"k8s-events-exporter", "name"=>"fluent-bit-k8s-events", "uid"=>"cbe900ec-d60f-46c7-b4dd-b2027d71d7a9", "apiVersion"=>"apps/v1", "resourceVersion"=>"1041"}, "reason"=>"ScalingReplicaSet", "message"=>"Scaled up replica set fluent-bit-k8s-events-b7f599f46 to 1", "source"=>{"component"=>"deployment-controller"}, "firstTimestamp"=>"2024-08-02T04:36:57Z", "lastTimestamp"=>"2024-08-02T04:36:57Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"deployment-controller", "reportingInstance"=>""}]
[15] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d-6qvz4.17e7cefb02983809", "namespace"=>"kube-system", "uid"=>"a3b6e8b9-69f6-475d-bf9a-a1f8417245ad", "resourceVersion"=>"373", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-scheduler", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d-6qvz4", "uid"=>"fa5dec31-4d66-4faa-92b0-fe9ba295dc5f", "apiVersion"=>"v1", "resourceVersion"=>"369"}, "reason"=>"FailedScheduling", "message"=>"0/1 nodes are available: 1 node(s) had untolerated taint {node.kubernetes.io/not-ready: }. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.", "source"=>{"component"=>"default-scheduler"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Warning", "eventTime"=>nil, "reportingComponent"=>"default-scheduler", "reportingInstance"=>""}]
[16] k-events: [[1722572961.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d-6qvz4.17e7cefb69d451a0", "namespace"=>"kube-system", "uid"=>"31194340-3a03-4b9d-928e-d6e30674b492", "resourceVersion"=>"409", "creationTimestamp"=>"2024-08-02T04:29:21Z", "managedFields"=>[{"manager"=>"kube-scheduler", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:21Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d-6qvz4", "uid"=>"fa5dec31-4d66-4faa-92b0-fe9ba295dc5f", "apiVersion"=>"v1", "resourceVersion"=>"376"}, "reason"=>"Scheduled", "message"=>"Successfully assigned kube-system/coredns-7db6d8ff4d-6qvz4 to events-exporter-test-control-plane", "source"=>{"component"=>"default-scheduler"}, "firstTimestamp"=>"2024-08-02T04:29:21Z", "lastTimestamp"=>"2024-08-02T04:29:21Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"default-scheduler", "reportingInstance"=>""}]
[17] k-events: [[1722572962.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d-6qvz4.17e7cefb834ad9ee", "namespace"=>"kube-system", "uid"=>"1bce36ee-6334-4224-89bd-2db4da10a6f9", "resourceVersion"=>"413", "creationTimestamp"=>"2024-08-02T04:29:22Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:22Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d-6qvz4", "uid"=>"fa5dec31-4d66-4faa-92b0-fe9ba295dc5f", "apiVersion"=>"v1", "resourceVersion"=>"403", "fieldPath"=>"spec.containers{coredns}"}, "reason"=>"Pulled", "message"=>"Container image "registry.k8s.io/coredns/coredns:v1.11.1" already present on machine", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:22Z", "lastTimestamp"=>"2024-08-02T04:29:22Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[18] k-events: [[1722572962.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d-6qvz4.17e7cefbab5d9d6c", "namespace"=>"kube-system", "uid"=>"83630cdb-6d70-4e96-acf6-a5424b5432d9", "resourceVersion"=>"420", "creationTimestamp"=>"2024-08-02T04:29:22Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:22Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d-6qvz4", "uid"=>"fa5dec31-4d66-4faa-92b0-fe9ba295dc5f", "apiVersion"=>"v1", "resourceVersion"=>"403", "fieldPath"=>"spec.containers{coredns}"}, "reason"=>"Created", "message"=>"Created container coredns", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:22Z", "lastTimestamp"=>"2024-08-02T04:29:22Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[19] k-events: [[1722572962.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d-6qvz4.17e7cefbb090e89e", "namespace"=>"kube-system", "uid"=>"6eee075d-8338-43fa-9f10-7ca9e27bcb49", "resourceVersion"=>"422", "creationTimestamp"=>"2024-08-02T04:29:22Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:22Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d-6qvz4", "uid"=>"fa5dec31-4d66-4faa-92b0-fe9ba295dc5f", "apiVersion"=>"v1", "resourceVersion"=>"403", "fieldPath"=>"spec.containers{coredns}"}, "reason"=>"Started", "message"=>"Started container coredns", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:22Z", "lastTimestamp"=>"2024-08-02T04:29:22Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[20] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d-v2hf6.17e7cefb032e54e9", "namespace"=>"kube-system", "uid"=>"02bd5600-8986-4223-98e1-823c57801d16", "resourceVersion"=>"380", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-scheduler", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d-v2hf6", "uid"=>"79d79ffb-1b9b-4848-b244-339f0aa3bd41", "apiVersion"=>"v1", "resourceVersion"=>"371"}, "reason"=>"FailedScheduling", "message"=>"0/1 nodes are available: 1 node(s) had untolerated taint {node.kubernetes.io/not-ready: }. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.", "source"=>{"component"=>"default-scheduler"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Warning", "eventTime"=>nil, "reportingComponent"=>"default-scheduler", "reportingInstance"=>""}]
[21] k-events: [[1722572961.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d-v2hf6.17e7cefb69cfdfc4", "namespace"=>"kube-system", "uid"=>"77f1c363-70c4-44e5-8d59-49512966816f", "resourceVersion"=>"407", "creationTimestamp"=>"2024-08-02T04:29:21Z", "managedFields"=>[{"manager"=>"kube-scheduler", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:21Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d-v2hf6", "uid"=>"79d79ffb-1b9b-4848-b244-339f0aa3bd41", "apiVersion"=>"v1", "resourceVersion"=>"383"}, "reason"=>"Scheduled", "message"=>"Successfully assigned kube-system/coredns-7db6d8ff4d-v2hf6 to events-exporter-test-control-plane", "source"=>{"component"=>"default-scheduler"}, "firstTimestamp"=>"2024-08-02T04:29:21Z", "lastTimestamp"=>"2024-08-02T04:29:21Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"default-scheduler", "reportingInstance"=>""}]
[22] k-events: [[1722572962.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d-v2hf6.17e7cefb834597bd", "namespace"=>"kube-system", "uid"=>"139ce4ba-d4c0-4770-8610-e784117a55f6", "resourceVersion"=>"412", "creationTimestamp"=>"2024-08-02T04:29:22Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:22Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d-v2hf6", "uid"=>"79d79ffb-1b9b-4848-b244-339f0aa3bd41", "apiVersion"=>"v1", "resourceVersion"=>"404", "fieldPath"=>"spec.containers{coredns}"}, "reason"=>"Pulled", "message"=>"Container image "registry.k8s.io/coredns/coredns:v1.11.1" already present on machine", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:22Z", "lastTimestamp"=>"2024-08-02T04:29:22Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[23] k-events: [[1722572962.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d-v2hf6.17e7cefbabf20ad1", "namespace"=>"kube-system", "uid"=>"ab0d2124-dc86-4cc8-b206-e9f5b49efca5", "resourceVersion"=>"421", "creationTimestamp"=>"2024-08-02T04:29:22Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:22Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d-v2hf6", "uid"=>"79d79ffb-1b9b-4848-b244-339f0aa3bd41", "apiVersion"=>"v1", "resourceVersion"=>"404", "fieldPath"=>"spec.containers{coredns}"}, "reason"=>"Created", "message"=>"Created container coredns", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:22Z", "lastTimestamp"=>"2024-08-02T04:29:22Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[24] k-events: [[1722572962.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d-v2hf6.17e7cefbb0b639d7", "namespace"=>"kube-system", "uid"=>"c5b67b73-f422-4e73-8164-a9754b281ebe", "resourceVersion"=>"423", "creationTimestamp"=>"2024-08-02T04:29:22Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:22Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d-v2hf6", "uid"=>"79d79ffb-1b9b-4848-b244-339f0aa3bd41", "apiVersion"=>"v1", "resourceVersion"=>"404", "fieldPath"=>"spec.containers{coredns}"}, "reason"=>"Started", "message"=>"Started container coredns", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:22Z", "lastTimestamp"=>"2024-08-02T04:29:22Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[25] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d.17e7cefb0294b258", "namespace"=>"kube-system", "uid"=>"65fe6094-9280-40f4-aad1-b5d9b6e4498a", "resourceVersion"=>"372", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"ReplicaSet", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d", "uid"=>"491d94bd-5a89-4428-bdd0-32204d5b5458", "apiVersion"=>"apps/v1", "resourceVersion"=>"362"}, "reason"=>"SuccessfulCreate", "message"=>"Created pod: coredns-7db6d8ff4d-6qvz4", "source"=>{"component"=>"replicaset-controller"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"replicaset-controller", "reportingInstance"=>""}]
[26] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"coredns-7db6d8ff4d.17e7cefb02cab86c", "namespace"=>"kube-system", "uid"=>"49693858-1ad8-494b-a7a4-246929ac79e1", "resourceVersion"=>"378", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"ReplicaSet", "namespace"=>"kube-system", "name"=>"coredns-7db6d8ff4d", "uid"=>"491d94bd-5a89-4428-bdd0-32204d5b5458", "apiVersion"=>"apps/v1", "resourceVersion"=>"362"}, "reason"=>"SuccessfulCreate", "message"=>"Created pod: coredns-7db6d8ff4d-v2hf6", "source"=>{"component"=>"replicaset-controller"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"replicaset-controller", "reportingInstance"=>""}]
[27] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"coredns.17e7cefafcb9321c", "namespace"=>"kube-system", "uid"=>"ee528c5f-b975-4893-9b6d-638702e662d2", "resourceVersion"=>"366", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Deployment", "namespace"=>"kube-system", "name"=>"coredns", "uid"=>"b83cfe95-84c8-4393-b67e-da319ea1a317", "apiVersion"=>"apps/v1", "resourceVersion"=>"246"}, "reason"=>"ScalingReplicaSet", "message"=>"Scaled up replica set coredns-7db6d8ff4d to 2", "source"=>{"component"=>"deployment-controller"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"deployment-controller", "reportingInstance"=>""}]
[28] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"kindnet-vxt5c.17e7cefad6da44e7", "namespace"=>"kube-system", "uid"=>"cfb0ab39-8135-4d21-81f1-7e9f5f63fb70", "resourceVersion"=>"335", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-scheduler", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"kindnet-vxt5c", "uid"=>"78462662-8128-4551-80ad-07e4a4df467f", "apiVersion"=>"v1", "resourceVersion"=>"327"}, "reason"=>"Scheduled", "message"=>"Successfully assigned kube-system/kindnet-vxt5c to events-exporter-test-control-plane", "source"=>{"component"=>"default-scheduler"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"default-scheduler", "reportingInstance"=>""}]
[29] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"kindnet-vxt5c.17e7cefadf8b941a", "namespace"=>"kube-system", "uid"=>"5656a5f5-ebeb-4baa-a565-d1ededd4839f", "resourceVersion"=>"339", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"kindnet-vxt5c", "uid"=>"78462662-8128-4551-80ad-07e4a4df467f", "apiVersion"=>"v1", "resourceVersion"=>"331"}, "reason"=>"FailedMount", "message"=>"MountVolume.SetUp failed for volume "kube-api-access-rr6wn" : configmap "kube-root-ca.crt" not found", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Warning", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[30] k-events: [[1722572960.000000000, {}], {"metadata"=>{"name"=>"kindnet-vxt5c.17e7cefb13835914", "namespace"=>"kube-system", "uid"=>"27f9cf5d-5258-44bb-90de-0f44e9af8f56", "resourceVersion"=>"388", "creationTimestamp"=>"2024-08-02T04:29:20Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:20Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"kindnet-vxt5c", "uid"=>"78462662-8128-4551-80ad-07e4a4df467f", "apiVersion"=>"v1", "resourceVersion"=>"331", "fieldPath"=>"spec.containers{kindnet-cni}"}, "reason"=>"Pulled", "message"=>"Container image "docker.io/kindest/kindnetd:v20240202-8f1494ea" already present on machine", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:20Z", "lastTimestamp"=>"2024-08-02T04:29:20Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[31] k-events: [[1722572960.000000000, {}], {"metadata"=>{"name"=>"kindnet-vxt5c.17e7cefb31042ea2", "namespace"=>"kube-system", "uid"=>"d5785411-feec-4e74-a7a4-2b43864a6709", "resourceVersion"=>"392", "creationTimestamp"=>"2024-08-02T04:29:20Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:20Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"kindnet-vxt5c", "uid"=>"78462662-8128-4551-80ad-07e4a4df467f", "apiVersion"=>"v1", "resourceVersion"=>"331", "fieldPath"=>"spec.containers{kindnet-cni}"}, "reason"=>"Created", "message"=>"Created container kindnet-cni", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:20Z", "lastTimestamp"=>"2024-08-02T04:29:20Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[32] k-events: [[1722572961.000000000, {}], {"metadata"=>{"name"=>"kindnet-vxt5c.17e7cefb4315ca65", "namespace"=>"kube-system", "uid"=>"db414dd7-dd9f-46c4-bcc0-4bc9671a4899", "resourceVersion"=>"393", "creationTimestamp"=>"2024-08-02T04:29:21Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:21Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"kindnet-vxt5c", "uid"=>"78462662-8128-4551-80ad-07e4a4df467f", "apiVersion"=>"v1", "resourceVersion"=>"331", "fieldPath"=>"spec.containers{kindnet-cni}"}, "reason"=>"Started", "message"=>"Started container kindnet-cni", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:21Z", "lastTimestamp"=>"2024-08-02T04:29:21Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[33] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"kindnet.17e7cefad68532bf", "namespace"=>"kube-system", "uid"=>"78e9e239-1b5e-4a3b-a945-275b31eefa25", "resourceVersion"=>"333", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"DaemonSet", "namespace"=>"kube-system", "name"=>"kindnet", "uid"=>"bf24cc1b-3050-403a-a1de-b6c719391ce8", "apiVersion"=>"apps/v1", "resourceVersion"=>"266"}, "reason"=>"SuccessfulCreate", "message"=>"Created pod: kindnet-vxt5c", "source"=>{"component"=>"daemonset-controller"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"daemonset-controller", "reportingInstance"=>""}]
[34] k-events: [[1722572945.000000000, {}], {"metadata"=>{"name"=>"kube-controller-manager.17e7cef7ad7f1ceb", "namespace"=>"kube-system", "uid"=>"3f058c66-bbf1-44ed-9a28-58a5de5c34f8", "resourceVersion"=>"225", "creationTimestamp"=>"2024-08-02T04:29:05Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:05Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Lease", "namespace"=>"kube-system", "name"=>"kube-controller-manager", "uid"=>"ef618002-e95c-4992-8741-aeac2af4ca97", "apiVersion"=>"coordination.k8s.io/v1", "resourceVersion"=>"223"}, "reason"=>"LeaderElection", "message"=>"events-exporter-test-control-plane_178c251c-63f7-4f3a-a122-012269467082 became leader", "source"=>{"component"=>"kube-controller-manager"}, "firstTimestamp"=>"2024-08-02T04:29:05Z", "lastTimestamp"=>"2024-08-02T04:29:05Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kube-controller-manager", "reportingInstance"=>""}]
[35] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"kube-proxy-dsvh4.17e7cefad69f8507", "namespace"=>"kube-system", "uid"=>"6f1f5075-d8cf-4f95-a143-f79727f01bda", "resourceVersion"=>"334", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-scheduler", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"kube-proxy-dsvh4", "uid"=>"837edf76-b3fc-40c0-88aa-c348bfed8e02", "apiVersion"=>"v1", "resourceVersion"=>"326"}, "reason"=>"Scheduled", "message"=>"Successfully assigned kube-system/kube-proxy-dsvh4 to events-exporter-test-control-plane", "source"=>{"component"=>"default-scheduler"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"default-scheduler", "reportingInstance"=>""}]
[36] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"kube-proxy-dsvh4.17e7cefadf879ca4", "namespace"=>"kube-system", "uid"=>"406c346e-3398-49cb-9928-d64bdeff3055", "resourceVersion"=>"338", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"kube-proxy-dsvh4", "uid"=>"837edf76-b3fc-40c0-88aa-c348bfed8e02", "apiVersion"=>"v1", "resourceVersion"=>"329"}, "reason"=>"FailedMount", "message"=>"MountVolume.SetUp failed for volume "kube-api-access-lj5mj" : configmap "kube-root-ca.crt" not found", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Warning", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[37] k-events: [[1722572960.000000000, {}], {"metadata"=>{"name"=>"kube-proxy-dsvh4.17e7cefb12511351", "namespace"=>"kube-system", "uid"=>"239872ff-366e-4492-a1b6-5bba6e54db6b", "resourceVersion"=>"387", "creationTimestamp"=>"2024-08-02T04:29:20Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:20Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"kube-proxy-dsvh4", "uid"=>"837edf76-b3fc-40c0-88aa-c348bfed8e02", "apiVersion"=>"v1", "resourceVersion"=>"329", "fieldPath"=>"spec.containers{kube-proxy}"}, "reason"=>"Pulled", "message"=>"Container image "registry.k8s.io/kube-proxy:v1.30.0" already present on machine", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:20Z", "lastTimestamp"=>"2024-08-02T04:29:20Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[38] k-events: [[1722572960.000000000, {}], {"metadata"=>{"name"=>"kube-proxy-dsvh4.17e7cefb2724311b", "namespace"=>"kube-system", "uid"=>"45d81945-be13-4eb4-9b13-01a60a3ad935", "resourceVersion"=>"389", "creationTimestamp"=>"2024-08-02T04:29:20Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:20Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"kube-proxy-dsvh4", "uid"=>"837edf76-b3fc-40c0-88aa-c348bfed8e02", "apiVersion"=>"v1", "resourceVersion"=>"329", "fieldPath"=>"spec.containers{kube-proxy}"}, "reason"=>"Created", "message"=>"Created container kube-proxy", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:20Z", "lastTimestamp"=>"2024-08-02T04:29:20Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[39] k-events: [[1722572960.000000000, {}], {"metadata"=>{"name"=>"kube-proxy-dsvh4.17e7cefb2c9f2120", "namespace"=>"kube-system", "uid"=>"bc7b5a86-60c9-44ab-b90e-30bea7766e32", "resourceVersion"=>"390", "creationTimestamp"=>"2024-08-02T04:29:20Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:20Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"kube-system", "name"=>"kube-proxy-dsvh4", "uid"=>"837edf76-b3fc-40c0-88aa-c348bfed8e02", "apiVersion"=>"v1", "resourceVersion"=>"329", "fieldPath"=>"spec.containers{kube-proxy}"}, "reason"=>"Started", "message"=>"Started container kube-proxy", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:20Z", "lastTimestamp"=>"2024-08-02T04:29:20Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[40] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"kube-proxy.17e7cefad65d5cfe", "namespace"=>"kube-system", "uid"=>"03a7b2f7-35d5-4da7-9098-3c70fa8b6f5d", "resourceVersion"=>"328", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"DaemonSet", "namespace"=>"kube-system", "name"=>"kube-proxy", "uid"=>"3bab590d-31be-4e1c-a86a-f947e5e59bca", "apiVersion"=>"apps/v1", "resourceVersion"=>"250"}, "reason"=>"SuccessfulCreate", "message"=>"Created pod: kube-proxy-dsvh4", "source"=>{"component"=>"daemonset-controller"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"daemonset-controller", "reportingInstance"=>""}]
[41] k-events: [[1722572947.000000000, {}], {"metadata"=>{"name"=>"kube-scheduler.17e7cef822a5f86d", "namespace"=>"kube-system", "uid"=>"6d75f583-c84a-4a0e-a22a-f723cafa47d4", "resourceVersion"=>"276", "creationTimestamp"=>"2024-08-02T04:29:07Z", "managedFields"=>[{"manager"=>"kube-scheduler", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:07Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Lease", "namespace"=>"kube-system", "name"=>"kube-scheduler", "uid"=>"57288d89-31a8-43d0-9e80-3c6233c97129", "apiVersion"=>"coordination.k8s.io/v1", "resourceVersion"=>"274"}, "reason"=>"LeaderElection", "message"=>"events-exporter-test-control-plane_678865bb-5f38-4006-bf0f-d60d92b7ac50 became leader", "source"=>{"component"=>"default-scheduler"}, "firstTimestamp"=>"2024-08-02T04:29:07Z", "lastTimestamp"=>"2024-08-02T04:29:07Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"default-scheduler", "reportingInstance"=>""}]
[42] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"local-path-provisioner-988d74bc-z9k54.17e7cefb03e2ea67", "namespace"=>"local-path-storage", "uid"=>"a23354ec-12a0-4d06-9135-97ec7565a4c5", "resourceVersion"=>"385", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-scheduler", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"local-path-storage", "name"=>"local-path-provisioner-988d74bc-z9k54", "uid"=>"11b540eb-68a9-4c1b-ad81-e018f0436843", "apiVersion"=>"v1", "resourceVersion"=>"370"}, "reason"=>"FailedScheduling", "message"=>"0/1 nodes are available: 1 node(s) had untolerated taint {node.kubernetes.io/not-ready: }. preemption: 0/1 nodes are available: 1 Preemption is not helpful for scheduling.", "source"=>{"component"=>"default-scheduler"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Warning", "eventTime"=>nil, "reportingComponent"=>"default-scheduler", "reportingInstance"=>""}]
[43] k-events: [[1722572961.000000000, {}], {"metadata"=>{"name"=>"local-path-provisioner-988d74bc-z9k54.17e7cefb69bdf16f", "namespace"=>"local-path-storage", "uid"=>"f50717ad-7cf0-40e7-aa87-65b382772960", "resourceVersion"=>"405", "creationTimestamp"=>"2024-08-02T04:29:21Z", "managedFields"=>[{"manager"=>"kube-scheduler", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:21Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"local-path-storage", "name"=>"local-path-provisioner-988d74bc-z9k54", "uid"=>"11b540eb-68a9-4c1b-ad81-e018f0436843", "apiVersion"=>"v1", "resourceVersion"=>"386"}, "reason"=>"Scheduled", "message"=>"Successfully assigned local-path-storage/local-path-provisioner-988d74bc-z9k54 to events-exporter-test-control-plane", "source"=>{"component"=>"default-scheduler"}, "firstTimestamp"=>"2024-08-02T04:29:21Z", "lastTimestamp"=>"2024-08-02T04:29:21Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"default-scheduler", "reportingInstance"=>""}]
[44] k-events: [[1722572962.000000000, {}], {"metadata"=>{"name"=>"local-path-provisioner-988d74bc-z9k54.17e7cefb834f2178", "namespace"=>"local-path-storage", "uid"=>"d4a15580-1cad-4c59-9c62-f27fb4969ebc", "resourceVersion"=>"414", "creationTimestamp"=>"2024-08-02T04:29:22Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:22Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"local-path-storage", "name"=>"local-path-provisioner-988d74bc-z9k54", "uid"=>"11b540eb-68a9-4c1b-ad81-e018f0436843", "apiVersion"=>"v1", "resourceVersion"=>"402", "fieldPath"=>"spec.containers{local-path-provisioner}"}, "reason"=>"Pulled", "message"=>"Container image "docker.io/kindest/local-path-provisioner:v20240202-8f1494ea" already present on machine", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:22Z", "lastTimestamp"=>"2024-08-02T04:29:22Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[45] k-events: [[1722572962.000000000, {}], {"metadata"=>{"name"=>"local-path-provisioner-988d74bc-z9k54.17e7cefb9d29f9a0", "namespace"=>"local-path-storage", "uid"=>"11fcacbf-9796-48f0-8d6c-3db22b8ebc58", "resourceVersion"=>"415", "creationTimestamp"=>"2024-08-02T04:29:22Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:22Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"local-path-storage", "name"=>"local-path-provisioner-988d74bc-z9k54", "uid"=>"11b540eb-68a9-4c1b-ad81-e018f0436843", "apiVersion"=>"v1", "resourceVersion"=>"402", "fieldPath"=>"spec.containers{local-path-provisioner}"}, "reason"=>"Created", "message"=>"Created container local-path-provisioner", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:22Z", "lastTimestamp"=>"2024-08-02T04:29:22Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[46] k-events: [[1722572962.000000000, {}], {"metadata"=>{"name"=>"local-path-provisioner-988d74bc-z9k54.17e7cefba33554ff", "namespace"=>"local-path-storage", "uid"=>"eca3d3f0-3718-4392-8207-c368d632176e", "resourceVersion"=>"416", "creationTimestamp"=>"2024-08-02T04:29:22Z", "managedFields"=>[{"manager"=>"kubelet", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:22Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:reportingInstance"=>{}, "f:source"=>{"f:component"=>{}, "f:host"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Pod", "namespace"=>"local-path-storage", "name"=>"local-path-provisioner-988d74bc-z9k54", "uid"=>"11b540eb-68a9-4c1b-ad81-e018f0436843", "apiVersion"=>"v1", "resourceVersion"=>"402", "fieldPath"=>"spec.containers{local-path-provisioner}"}, "reason"=>"Started", "message"=>"Started container local-path-provisioner", "source"=>{"component"=>"kubelet", "host"=>"events-exporter-test-control-plane"}, "firstTimestamp"=>"2024-08-02T04:29:22Z", "lastTimestamp"=>"2024-08-02T04:29:22Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"kubelet", "reportingInstance"=>"events-exporter-test-control-plane"}]
[47] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"local-path-provisioner-988d74bc.17e7cefb02b85c10", "namespace"=>"local-path-storage", "uid"=>"22881f22-958f-4200-80cd-533f2b2eb7bf", "resourceVersion"=>"375", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"ReplicaSet", "namespace"=>"local-path-storage", "name"=>"local-path-provisioner-988d74bc", "uid"=>"b57f9ebc-025b-4288-a191-9affe6cf19bf", "apiVersion"=>"apps/v1", "resourceVersion"=>"361"}, "reason"=>"SuccessfulCreate", "message"=>"Created pod: local-path-provisioner-988d74bc-z9k54", "source"=>{"component"=>"replicaset-controller"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"replicaset-controller", "reportingInstance"=>""}]
[48] k-events: [[1722572959.000000000, {}], {"metadata"=>{"name"=>"local-path-provisioner.17e7cefafcaa66ad", "namespace"=>"local-path-storage", "uid"=>"de9efb37-8e38-4789-b854-7f908919cb72", "resourceVersion"=>"363", "creationTimestamp"=>"2024-08-02T04:29:19Z", "managedFields"=>[{"manager"=>"kube-controller-manager", "operation"=>"Update", "apiVersion"=>"v1", "time"=>"2024-08-02T04:29:19Z", "fieldsType"=>"FieldsV1", "fieldsV1"=>{"f:count"=>{}, "f:firstTimestamp"=>{}, "f:involvedObject"=>{}, "f:lastTimestamp"=>{}, "f:message"=>{}, "f:reason"=>{}, "f:reportingComponent"=>{}, "f:source"=>{"f:component"=>{}}, "f:type"=>{}}}]}, "involvedObject"=>{"kind"=>"Deployment", "namespace"=>"local-path-storage", "name"=>"local-path-provisioner", "uid"=>"909d714c-f437-4532-a757-d1ca4be7b7eb", "apiVersion"=>"apps/v1", "resourceVersion"=>"271"}, "reason"=>"ScalingReplicaSet", "message"=>"Scaled up replica set local-path-provisioner-988d74bc to 1", "source"=>{"component"=>"deployment-controller"}, "firstTimestamp"=>"2024-08-02T04:29:19Z", "lastTimestamp"=>"2024-08-02T04:29:19Z", "count"=>1, "type"=>"Normal", "eventTime"=>nil, "reportingComponent"=>"deployment-controller", "reportingInstance"=>""}]

Podemos perceber que tudo funcionou conforme esperado. O Fluent Bit coletou os eventos do Kubernetes e está emitindo no stdout do container. Isso validou nossa solução, embora que de maneira bastante simples e sem a persistência dos dados.

Envio para o Datalake

Agora vamos avançar alguns passos na nossa solução. Vamos enviar nossos eventos para um datalake, no caso um storage compatível com o protocolo S3. Para isso, vamos utilizar o plugin s3 do Fluent Bit e o MinIO como storage.

O MinIO é um storage compatível com o protocolo S3 e pode ser executado em containers. Ele é bastante utilizado para testes locais e desenvolvimento, pela facilidade de uso, pela leveza da aplicação e a facilidade de replicar um ambiente de produção que necessite de um bucket no S3.

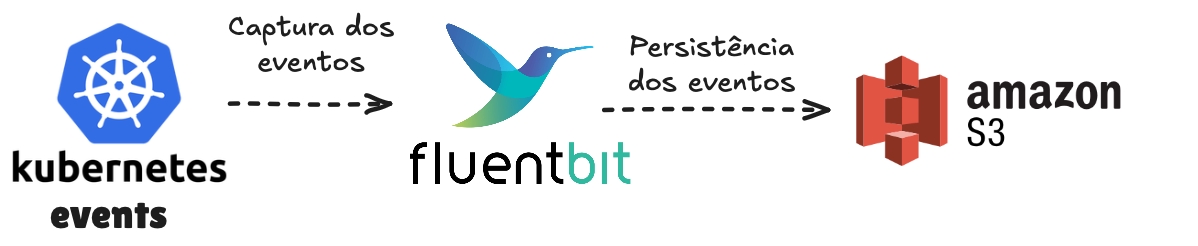

Diagrama Kubernetes Events - FluentBit - S3

Instalando o MinIO

Vamos seguir a documentação oficial do MinIO para instalá-lo no nosso cluster. Primeiro vamos aplicar o seguinte yaml que define um novo namespace chamado minio-dev e um deployment do MinIO. O que vamos aplicar em seguida é uma variação do yaml indicado na documentação. Observe que iremos criar um serviço para o MinIO, para que possamos acessá-lo através de um dns interno no cluster.

kubectl apply -f - << EOF
apiVersion: v1
kind: Namespace
metadata:
  name: minio-dev
  labels:
    name: minio-dev
---
apiVersion: v1
kind: Pod
metadata:
  labels:
    app: minio
  name: minio
  namespace: minio-dev
spec:
  containers:
  - name: minio
    image: quay.io/minio/minio:latest
    command:
    - /bin/bash
    - -c
    args:
    - minio server /data --console-address :9001
    volumeMounts:
    - mountPath: /data
      name: localvolume
  volumes:
  - name: localvolume
    hostPath:
      path: /mnt/disk1/data
      type: DirectoryOrCreate
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: minio
  name: minio
  namespace: minio-dev
spec:
  ports:
  - name: minio
    port: 9000
    targetPort: 9000
  - name: console
    port: 9001
    targetPort: 9001
  selector:
    app: minio
EOF

A saída deverá ser parecida com essa:

namespace/minio-dev created
pod/minio created
service/minio created

Vamos acessar o console do MinIO e criar um bucket para armazenar nossos eventos. Para isso, vamos encaminhar a porta 9001 do MinIO para nossa máquina local.

$ kubectl port-forward -n minio-dev pod/minio 9001:9001
Forwarding from 127.0.0.1:9001 -> 9001
Forwarding from [::1]:9001 -> 9001
Handling connection for 9001

Acesse o endereço http://localhost:9001 e você será redirecionado para uma tela de login. As credenciais padrão são minioadmin para o usuário e minioadmin para a senha. Após o login, você será redirecionado para o console do MinIO.

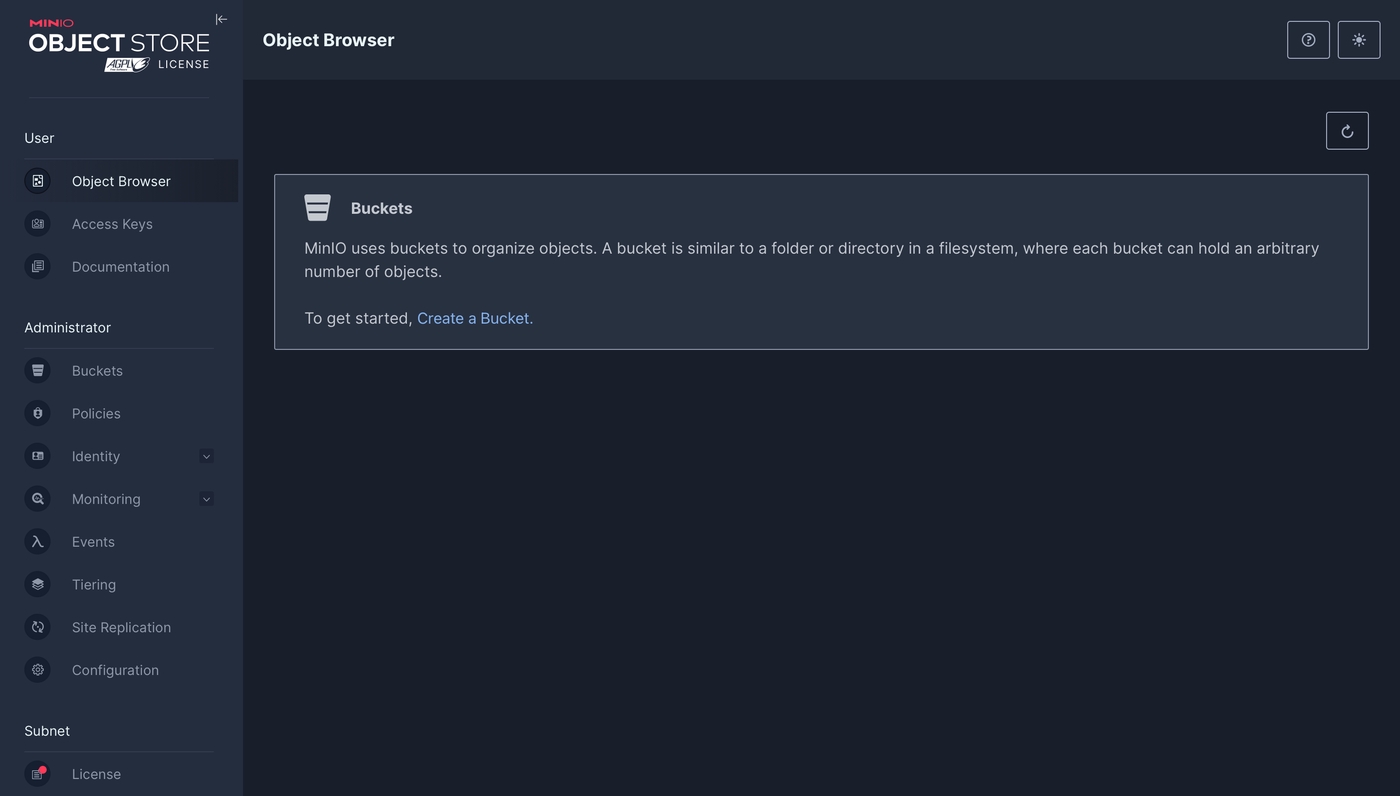

Console do MinIO

No menu lateral, clique em Buckets e depois em Create bucket.

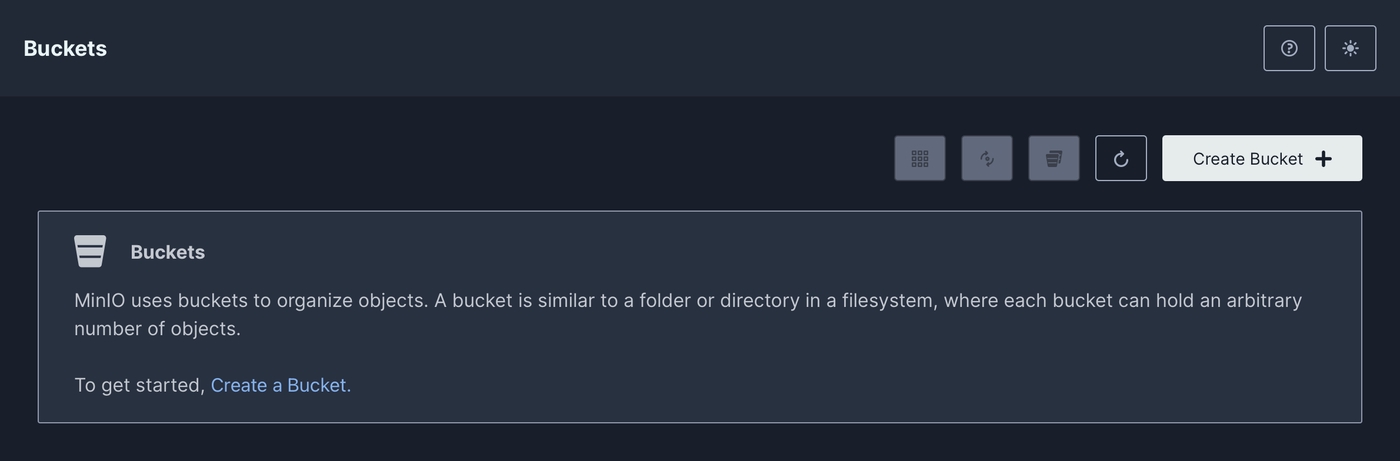

Página de Buckets do MinIO

Crie um bucket chamado kubernetes-events e mantenha as demais configurações padrão.

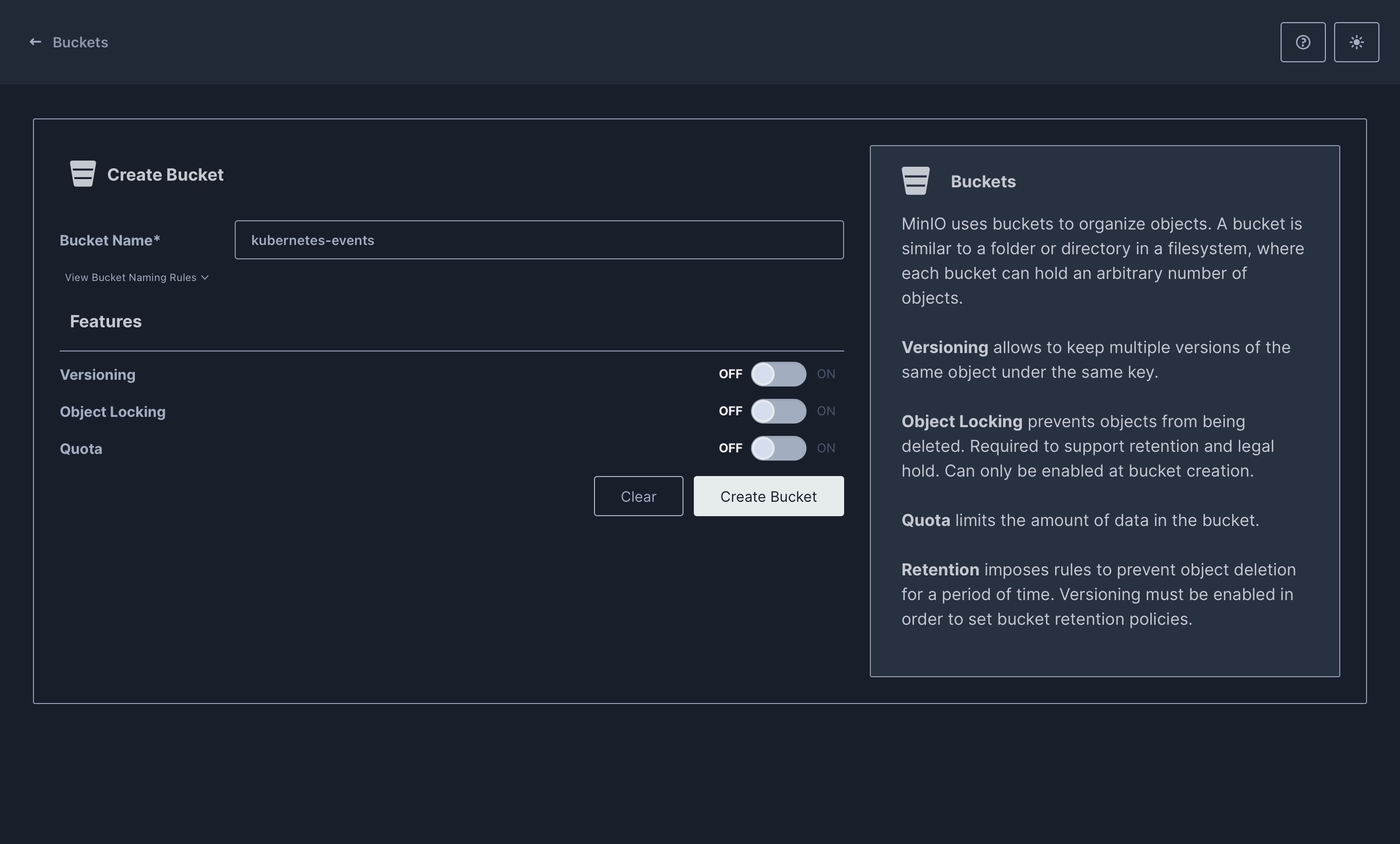

Página de criação de bucket do MinIO

Voltando na página de Buckets, você verá o bucket recém criado.

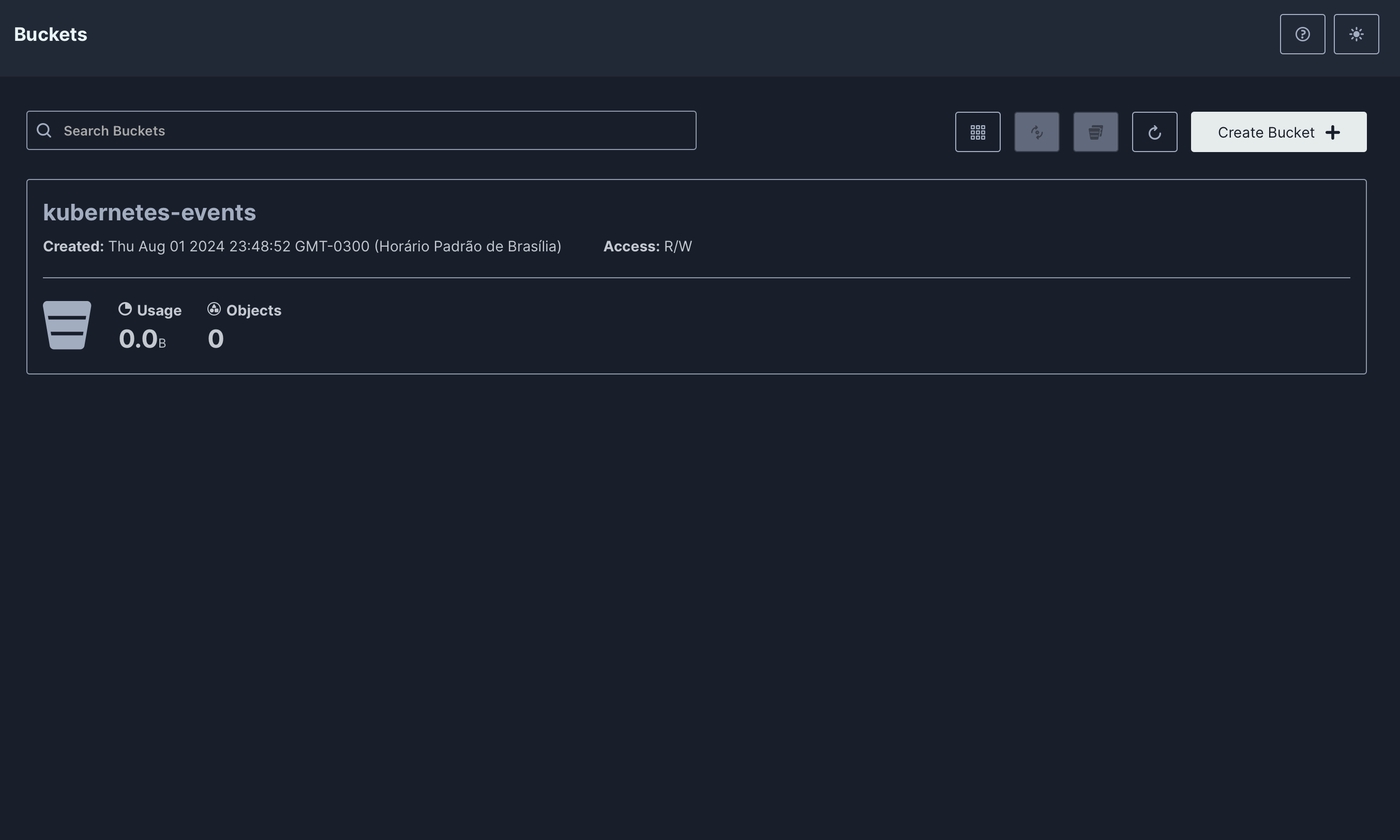

Lista de Buckets do MinIO

Agora que já temos o nosso bucket, este que receberá os arquivos contendo os eventos do Kubernetes, vamos configurar o Fluent Bit para enviar os eventos para ele. Devemos então configurar o OUTPUT para o envio no S3. Lembrando mais uma vez que o MinIO é compatível com o protocolo do S3. Em produção recomendo você utilizar o próprio S3 da AWS, ou Google Cloud Storage, ou Azure Blob Storage, ou qualquer outro storage compatível com o protocolo S3.

Nosso values.yaml ficará assim:

kind: Deployment
replicas: 1
rbac:
  eventsAccess: true
env:
  - name: AWS_ACCESS_KEY_ID
    value: "minioadmin"
  - name: AWS_SECRET_ACCESS_KEY
    value: "minioadmin"
config:
  inputs: |
    [INPUT]
        name  kubernetes_events
        tag   k-events
  filters: ""
  outputs: |
    [OUTPUT]
        name           s3
        match          k-events
        bucket         kubernetes-events
        endpoint       http://minio.minio-dev.svc:9000
        upload_timeout 10s
        s3_key_format  /%Y-%m-%d/%H:%M:%S-$UUID.json
        content_type   application/json

Observe que definimos cinco configurações no output para o S3: o bucket, o endpoint, o upload_timeout, o s3_key_format e o content_type.

Além da configuração do output, também definimos as variáveis de ambiente contendo as credenciais de acesso ao MinIO. Essas credenciais são as padrões do MinIO e devemos colocá-las como se estivéssemos configurando a aplicação para acessar o S3 da AWS. Para isso colocamos o AWS_ACCESS_KEY_ID e o AWS_SECRET_ACCESS_KEY com os valores minioadmin, para que o SDK da AWS consiga se autenticar no MinIO.

Aplicando as novas configurações:

helm upgrade --install fluent-bit-k8s-events fluent-bit \
  --repo https://fluent.github.io/helm-charts \
  --version 0.47.5 \
  --namespace k8s-events-exporter --create-namespace \
  -f - << EOF
kind: Deployment
replicas: 1
rbac:
  eventsAccess: true
env:
  - name: AWS_ACCESS_KEY_ID
    value: "minioadmin"
  - name: AWS_SECRET_ACCESS_KEY
    value: "minioadmin"
config:
  inputs: |
    [INPUT]
        name  kubernetes_events
        tag   k-events
  filters: ""
  outputs: |
    [OUTPUT]
        name           s3
        match          k-events
        bucket         kubernetes-events
        endpoint       http://minio.minio-dev.svc:9000
        upload_timeout 10s
        s3_key_format  /%Y-%m-%d/%H:%M:%S-\$UUID.json
        content_type   application/json
EOF

O escape do $UUID é necessário para que o nosso shell não interprete a variável $UUID como uma variável do shell.

A saída deverá ser parecida com essa:

Release "fluent-bit-k8s-events" has been upgraded. Happy Helming!
NAME: fluent-bit-k8s-events
LAST DEPLOYED: Fri Aug  2 01:46:51 2024
NAMESPACE: k8s-events-exporter
STATUS: deployed
REVISION: 2
NOTES:
Get Fluent Bit build information by running these commands:

export POD_NAME=$(kubectl get pods --namespace k8s-events-exporter -l "app.kubernetes.io/name=fluent-bit,app.kubernetes.io/instance=fluent-bit-k8s-events" -o jsonpath="{.items[0].metadata.name}")
kubectl --namespace k8s-events-exporter port-forward $POD_NAME 2020:2020
curl http://127.0.0.1:2020

Devemos verificar se os eventos estão sendo salvos de maneira adequada no MinIO. Para isso, vamos acessar o console do MinIO e verificar se os arquivos estão sendo salvos no bucket kubernetes-events.

$ kubectl port-forward -n minio-dev pod/minio 9001:9001
Forwarding from 127.0.0.1:9001 -> 9001
Forwarding from [::1]:9001 -> 9001
Handling connection for 9001

Espere cerca de 1 minuto para que o Fluent Bit salve alguns arquivos em nosso bucket. Após isso, acesse o console do MinIO e verifique se os arquivos estão sendo salvos no bucket kubernetes-events.

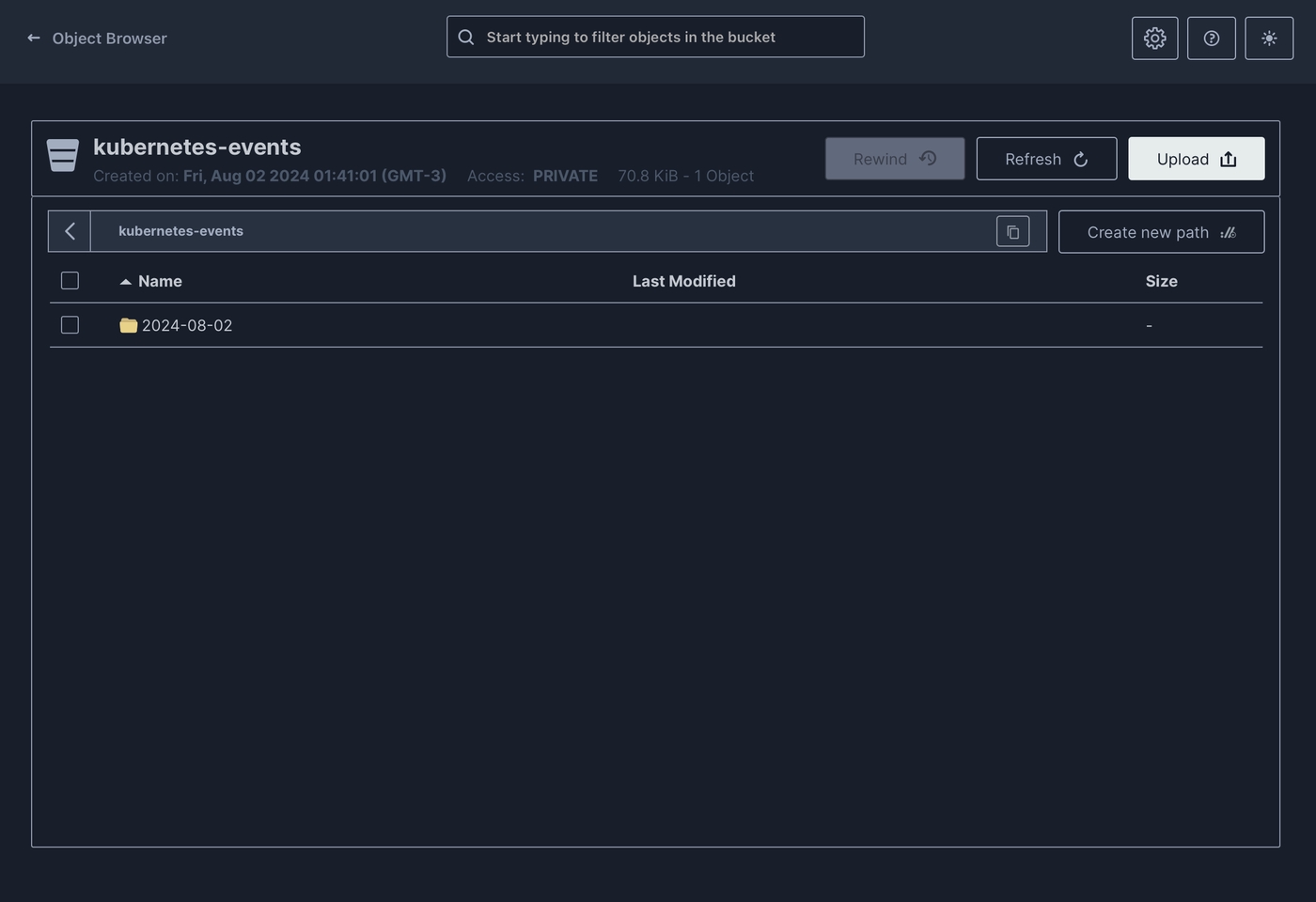

Pasta com a data no bucket

Clique na pasta com a data e você verá os arquivos salvos no bucket.

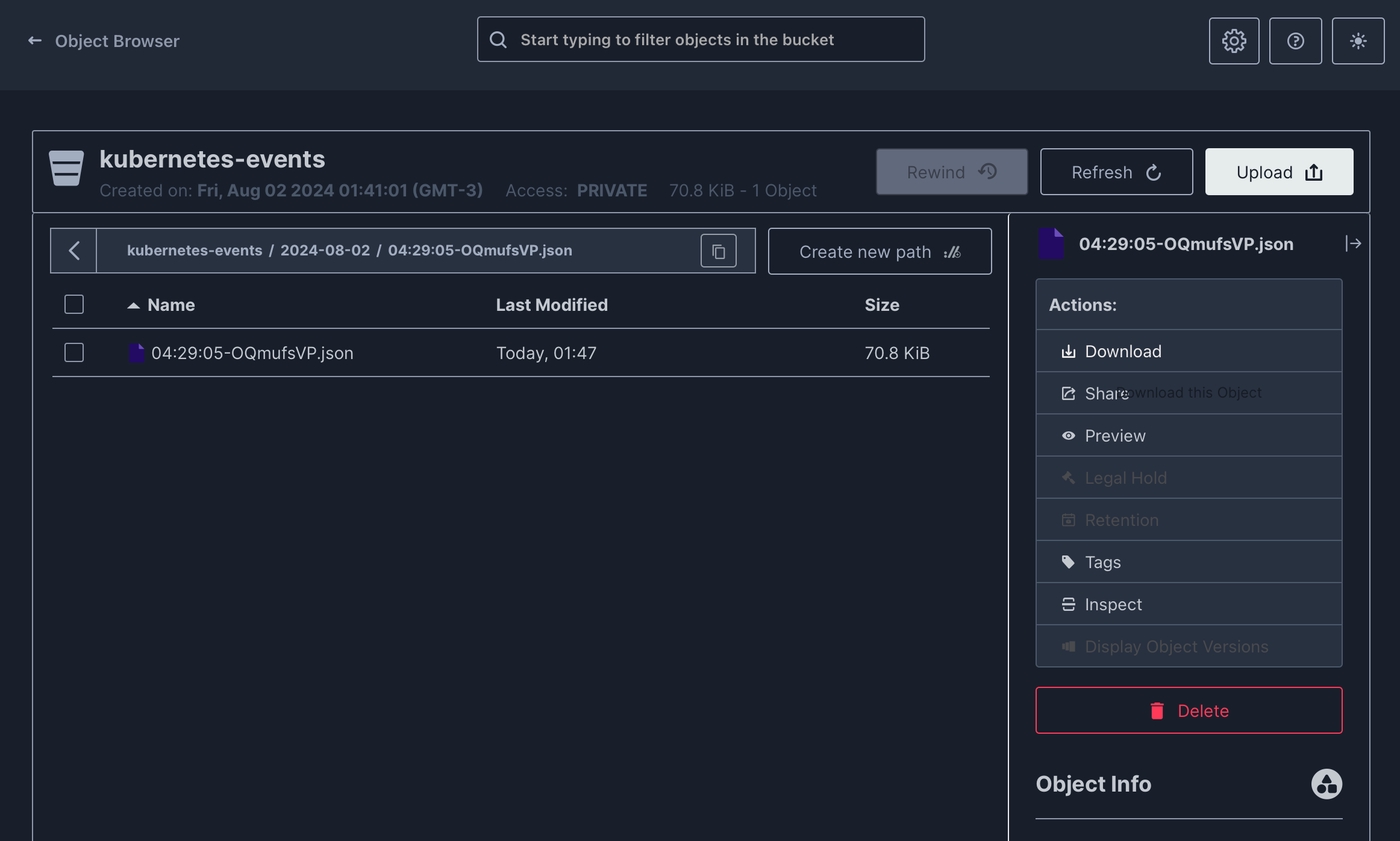

Arquivos salvos no bucket

Após fazer o download de um arquivo que foi enviado para nosso bucket, vamos pegar as 10 primeiras linhas para vermos o conteúdo:

{"date":"2024-08-02T04:29:05.000000Z","metadata":{"name":"events-exporter-test-control-plane.17e7cef7aa223ad9","namespace":"default","uid":"cb9806f2-5236-4e44-9565-61a6931c8f65","resourceVersion":"220","creationTimestamp":"2024-08-02T04:29:05Z","managedFields":[{"manager":"kubelet","operation":"Update","apiVersion":"v1","time":"2024-08-02T04:29:05Z","fieldsType":"FieldsV1","fieldsV1":{"f:count":{},"f:firstTimestamp":{},"f:involvedObject":{},"f:lastTimestamp":{},"f:message":{},"f:reason":{},"f:reportingComponent":{},"f:reportingInstance":{},"f:source":{"f:component":{},"f:host":{}},"f:type":{}}}]},"involvedObject":{"kind":"Node","name":"events-exporter-test-control-plane","uid":"events-exporter-test-control-plane"},"reason":"Starting","message":"Starting kubelet.","source":{"component":"kubelet","host":"events-exporter-test-control-plane"},"firstTimestamp":"2024-08-02T04:29:05Z","lastTimestamp":"2024-08-02T04:29:05Z","count":1,"type":"Normal","eventTime":null,"reportingComponent":"kubelet","reportingInstance":"events-exporter-test-control-plane"}
{"date":"2024-08-02T04:29:05.000000Z","metadata":{"name":"events-exporter-test-control-plane.17e7cef7ac3121bb","namespace":"default","uid":"bc3a5237-c247-4f37-8162-6497d6d4f52f","resourceVersion":"222","creationTimestamp":"2024-08-02T04:29:05Z","managedFields":[{"manager":"kubelet","operation":"Update","apiVersion":"v1","time":"2024-08-02T04:29:05Z","fieldsType":"FieldsV1","fieldsV1":{"f:count":{},"f:firstTimestamp":{},"f:involvedObject":{},"f:lastTimestamp":{},"f:message":{},"f:reason":{},"f:reportingComponent":{},"f:reportingInstance":{},"f:source":{"f:component":{},"f:host":{}},"f:type":{}}}]},"involvedObject":{"kind":"Node","name":"events-exporter-test-control-plane","uid":"events-exporter-test-control-plane"},"reason":"NodeAllocatableEnforced","message":"Updated Node Allocatable limit across pods","source":{"component":"kubelet","host":"events-exporter-test-control-plane"},"firstTimestamp":"2024-08-02T04:29:05Z","lastTimestamp":"2024-08-02T04:29:05Z","count":1,"type":"Normal","eventTime":null,"reportingComponent":"kubelet","reportingInstance":"events-exporter-test-control-plane"}
{"date":"2024-08-02T04:29:05.000000Z","metadata":{"name":"events-exporter-test-control-plane.17e7cef7b0508eb2","namespace":"default","uid":"07486806-1ab8-4fa0-b9b8-10bb813fbc66","resourceVersion":"235","creationTimestamp":"2024-08-02T04:29:05Z","managedFields":[{"manager":"kubelet","operation":"Update","apiVersion":"v1","time":"2024-08-02T04:29:05Z","fieldsType":"FieldsV1","fieldsV1":{"f:count":{},"f:firstTimestamp":{},"f:involvedObject":{},"f:lastTimestamp":{},"f:message":{},"f:reason":{},"f:reportingComponent":{},"f:reportingInstance":{},"f:source":{"f:component":{},"f:host":{}},"f:type":{}}}]},"involvedObject":{"kind":"Node","name":"events-exporter-test-control-plane","uid":"events-exporter-test-control-plane"},"reason":"NodeHasSufficientMemory","message":"Node events-exporter-test-control-plane status is now: NodeHasSufficientMemory","source":{"component":"kubelet","host":"events-exporter-test-control-plane"},"firstTimestamp":"2024-08-02T04:29:05Z","lastTimestamp":"2024-08-02T04:29:05Z","count":1,"type":"Normal","eventTime":null,"reportingComponent":"kubelet","reportingInstance":"events-exporter-test-control-plane"}
{"date":"2024-08-02T04:29:05.000000Z","metadata":{"name":"events-exporter-test-control-plane.17e7cef7b050b615","namespace":"default","uid":"93adfe12-0a06-4255-926b-ede9c89e388e","resourceVersion":"236","creationTimestamp":"2024-08-02T04:29:05Z","managedFields":[{"manager":"kubelet","operation":"Update","apiVersion":"v1","time":"2024-08-02T04:29:05Z","fieldsType":"FieldsV1","fieldsV1":{"f:count":{},"f:firstTimestamp":{},"f:involvedObject":{},"f:lastTimestamp":{},"f:message":{},"f:reason":{},"f:reportingComponent":{},"f:reportingInstance":{},"f:source":{"f:component":{},"f:host":{}},"f:type":{}}}]},"involvedObject":{"kind":"Node","name":"events-exporter-test-control-plane","uid":"events-exporter-test-control-plane"},"reason":"NodeHasNoDiskPressure","message":"Node events-exporter-test-control-plane status is now: NodeHasNoDiskPressure","source":{"component":"kubelet","host":"events-exporter-test-control-plane"},"firstTimestamp":"2024-08-02T04:29:05Z","lastTimestamp":"2024-08-02T04:29:05Z","count":1,"type":"Normal","eventTime":null,"reportingComponent":"kubelet","reportingInstance":"events-exporter-test-control-plane"}
{"date":"2024-08-02T04:29:05.000000Z","metadata":{"name":"events-exporter-test-control-plane.17e7cef7b050c24a","namespace":"default","uid":"b1bc8722-bb7d-4414-b94a-ca15b5cd86f8","resourceVersion":"238","creationTimestamp":"2024-08-02T04:29:05Z","managedFields":[{"manager":"kubelet","operation":"Update","apiVersion":"v1","time":"2024-08-02T04:29:05Z","fieldsType":"FieldsV1","fieldsV1":{"f:count":{},"f:firstTimestamp":{},"f:involvedObject":{},"f:lastTimestamp":{},"f:message":{},"f:reason":{},"f:reportingComponent":{},"f:reportingInstance":{},"f:source":{"f:component":{},"f:host":{}},"f:type":{}}}]},"involvedObject":{"kind":"Node","name":"events-exporter-test-control-plane","uid":"events-exporter-test-control-plane"},"reason":"NodeHasSufficientPID","message":"Node events-exporter-test-control-plane status is now: NodeHasSufficientPID","source":{"component":"kubelet","host":"events-exporter-test-control-plane"},"firstTimestamp":"2024-08-02T04:29:05Z","lastTimestamp":"2024-08-02T04:29:05Z","count":1,"type":"Normal","eventTime":null,"reportingComponent":"kubelet","reportingInstance":"events-exporter-test-control-plane"}
{"date":"2024-08-02T04:29:18.000000Z","metadata":{"name":"events-exporter-test-control-plane.17e7cefac6f1ccd2","namespace":"default","uid":"466470c8-e149-4a9d-93ef-50fba6ae380e","resourceVersion":"322","creationTimestamp":"2024-08-02T04:29:18Z","managedFields":[{"manager":"kube-controller-manager","operation":"Update","apiVersion":"v1","time":"2024-08-02T04:29:18Z","fieldsType":"FieldsV1","fieldsV1":{"f:count":{},"f:firstTimestamp":{},"f:involvedObject":{},"f:lastTimestamp":{},"f:message":{},"f:reason":{},"f:reportingComponent":{},"f:source":{"f:component":{}},"f:type":{}}}]},"involvedObject":{"kind":"Node","name":"events-exporter-test-control-plane","uid":"932765a5-514e-426c-8ff7-f329ffa623fb","apiVersion":"v1"},"reason":"RegisteredNode","message":"Node events-exporter-test-control-plane event: Registered Node events-exporter-test-control-plane in Controller","source":{"component":"node-controller"},"firstTimestamp":"2024-08-02T04:29:18Z","lastTimestamp":"2024-08-02T04:29:18Z","count":1,"type":"Normal","eventTime":null,"reportingComponent":"node-controller","reportingInstance":""}
{"date":"2024-08-02T04:29:20.000000Z","metadata":{"name":"events-exporter-test-control-plane.17e7cefb3030f53a","namespace":"default","uid":"9bcc5496-8f67-4008-a904-5471f4a4d06a","resourceVersion":"391","creationTimestamp":"2024-08-02T04:29:20Z","managedFields":[{"manager":"kube-proxy","operation":"Update","apiVersion":"events.k8s.io/v1","time":"2024-08-02T04:29:20Z","fieldsType":"FieldsV1","fieldsV1":{"f:action":{},"f:eventTime":{},"f:reason":{},"f:regarding":{},"f:reportingController":{},"f:reportingInstance":{},"f:type":{}}}]},"involvedObject":{"kind":"Node","name":"events-exporter-test-control-plane","uid":"events-exporter-test-control-plane"},"reason":"Starting","source":{},"firstTimestamp":null,"lastTimestamp":null,"type":"Normal","eventTime":"2024-08-02T04:29:20.733131Z","action":"StartKubeProxy","reportingComponent":"kube-proxy","reportingInstance":"kube-proxy-events-exporter-test-control-plane"}
{"date":"2024-08-02T04:29:21.000000Z","metadata":{"name":"events-exporter-test-control-plane.17e7cefb68eed8ac","namespace":"default","uid":"f2a486eb-e3d8-4c97-b073-5726887babb8","resourceVersion":"399","creationTimestamp":"2024-08-02T04:29:21Z","managedFields":[{"manager":"kubelet","operation":"Update","apiVersion":"v1","time":"2024-08-02T04:29:21Z","fieldsType":"FieldsV1","fieldsV1":{"f:count":{},"f:firstTimestamp":{},"f:involvedObject":{},"f:lastTimestamp":{},"f:message":{},"f:reason":{},"f:reportingComponent":{},"f:reportingInstance":{},"f:source":{"f:component":{},"f:host":{}},"f:type":{}}}]},"involvedObject":{"kind":"Node","name":"events-exporter-test-control-plane","uid":"events-exporter-test-control-plane"},"reason":"NodeReady","message":"Node events-exporter-test-control-plane status is now: NodeReady","source":{"component":"kubelet","host":"events-exporter-test-control-plane"},"firstTimestamp":"2024-08-02T04:29:21Z","lastTimestamp":"2024-08-02T04:29:21Z","count":1,"type":"Normal","eventTime":null,"reportingComponent":"kubelet","reportingInstance":"events-exporter-test-control-plane"}
{"date":"2024-08-02T04:46:51.000000Z","metadata":{"name":"fluent-bit-k8s-events-7bb67bf4c-l5rff.17e7cfefdf1a29b0","namespace":"k8s-events-exporter","uid":"26b52e9b-a9f9-4741-8913-2d97ac7eb3dc","resourceVersion":"1868","creationTimestamp":"2024-08-02T04:46:51Z","managedFields":[{"manager":"kube-scheduler","operation":"Update","apiVersion":"v1","time":"2024-08-02T04:46:51Z","fieldsType":"FieldsV1","fieldsV1":{"f:count":{},"f:firstTimestamp":{},"f:involvedObject":{},"f:lastTimestamp":{},"f:message":{},"f:reason":{},"f:reportingComponent":{},"f:source":{"f:component":{}},"f:type":{}}}]},"involvedObject":{"kind":"Pod","namespace":"k8s-events-exporter","name":"fluent-bit-k8s-events-7bb67bf4c-l5rff","uid":"2320545e-ce4f-489a-b97b-7eda791f186e","apiVersion":"v1","resourceVersion":"1862"},"reason":"Scheduled","message":"Successfully assigned k8s-events-exporter/fluent-bit-k8s-events-7bb67bf4c-l5rff to events-exporter-test-control-plane","source":{"component":"default-scheduler"},"firstTimestamp":"2024-08-02T04:46:51Z","lastTimestamp":"2024-08-02T04:46:51Z","count":1,"type":"Normal","eventTime":null,"reportingComponent":"default-scheduler","reportingInstance":""}
{"date":"2024-08-02T04:46:52.000000Z","metadata":{"name":"fluent-bit-k8s-events-7bb67bf4c-l5rff.17e7cfeff8e05f9d","namespace":"k8s-events-exporter","uid":"b4b1e3ac-b33c-43f9-8b89-17fa2d7ddb5c","resourceVersion":"1874","creationTimestamp":"2024-08-02T04:46:52Z","managedFields":[{"manager":"kubelet","operation":"Update","apiVersion":"v1","time":"2024-08-02T04:46:52Z","fieldsType":"FieldsV1","fieldsV1":{"f:count":{},"f:firstTimestamp":{},"f:involvedObject":{},"f:lastTimestamp":{},"f:message":{},"f:reason":{},"f:reportingComponent":{},"f:reportingInstance":{},"f:source":{"f:component":{},"f:host":{}},"f:type":{}}}]},"involvedObject":{"kind":"Pod","namespace":"k8s-events-exporter","name":"fluent-bit-k8s-events-7bb67bf4c-l5rff","uid":"2320545e-ce4f-489a-b97b-7eda791f186e","apiVersion":"v1","resourceVersion":"1865","fieldPath":"spec.containers{fluent-bit}"},"reason":"Pulled","message":"Container image \"cr.fluentbit.io/fluent/fluent-bit:3.1.4\" already present on machine","source":{"component":"kubelet","host":"events-exporter-test-control-plane"},"firstTimestamp":"2024-08-02T04:46:52Z","lastTimestamp":"2024-08-02T04:46:52Z","count":1,"type":"Normal","eventTime":null,"reportingComponent":"kubelet","reportingInstance":"events-exporter-test-control-plane"}

Podemos perceber que os eventos estão sendo salvos de maneira adequada em nosso bucket. Isso valida nossa solução de envio dos eventos do Kubernetes para um datalake. Esse arquivo no futuro poderá ser lido pelo Apache Spark, Pandas, Trino, Athena, ou qualquer outra ferramenta de análise de dados que você desejar.

Por fim, não esqueça de deletar o cluster Kind:

kind delete cluster --name events-exporter-test

Conclusão

Quando estamos lidando com o FluentBit temos diversos destinos para nossos dados. Nesse post precisei escolher um destino que achei mais interessante, mas você pode escolher qualquer outro destino que o FluentBit oferece. O exemplo de envio para uma fila Kafka também seria interessantíssimo e poderia ser utilizado para processamento em tempo real dos eventos do Kubernetes. Quem sabe em um post futuro não estendemos essa solução?

Vimos que os eventos do Kubernetes precisam ser coletados e armazenados de maneira eficiente para que possamos analisá-los e nos monirmos de informações em um cenário de resolução de problemas. Armazenar esses eventos em um datalake é uma maneira eficiente de garantir que esses dados estejam disponíveis em um momento futuro para que seja possível analisar o passado do seu cluster Kubernetes.

Espero que esse post tenha sido útil para você e que tenha agregado valor ao seu conhecimento.
